The Zhiyun Crane 3-Lab Handheld Stabilizer for DSLR takes a new direction in gimbal stabilizer design by designing the gimbal with a secondary handgrip where most of the manual controls and batteries are located. This allows the main handle to be shorter than previous versions of the Crane gimbal, allowing you to get closer to the ground for low-angle shots. The fixed-position secondary handle allows for a smooth transition to and from low mode as there is no repositioning of the handles required, just change your hand position. The gimbal supports two optional motors for focus and zoom, both controllable from the secondary handgrip as well as the app.
The gimbal can transmit 1080p video from your camera over Wi-Fi to a mobile device running the app. Your camera mounts on the sliding camera balance plate, and each axis has sliding adjustment allowing you to balance your camera on the gimbal. The Crane 3-Lab incorporates locks into each axis, allowing you to balance one axis at a time (you will need to release the locks before using the gimbal).
The gimbal includes a micro-USB cable and Type-C adapter that enables control of your camera’s functions and supports 1080p video.
The gimbal can transmit the camera’s output video, up to 1080p, to a mobile device running the free app.
The app will allow you to control the parameters of most cameras while controlling the gimbal and supporting the following:
- Smartphone monitor
- HDMI image transmission (high-resolution)
- G-Mode motion control (mimic joystick)
- Auto-follow object mode
- Adjust camera exposure values (ISO, white balance, framing, etc.)
- Two channels for focus and zoom control
The gimbal supports up to two lens control motors. However, no motors are included and they must be sourced separately.
|Number of Axes||3-Axis (Pitch, Roll, Yaw)|
|Rotation Range||Yaw (Pan): 360°|
|Load Capacity||10.14 lb / 4.6 kg|
|Ports||1 x USB Micro-B|
|Battery Type||3 x 18650|
|Battery Runtime||7.5 Hours|

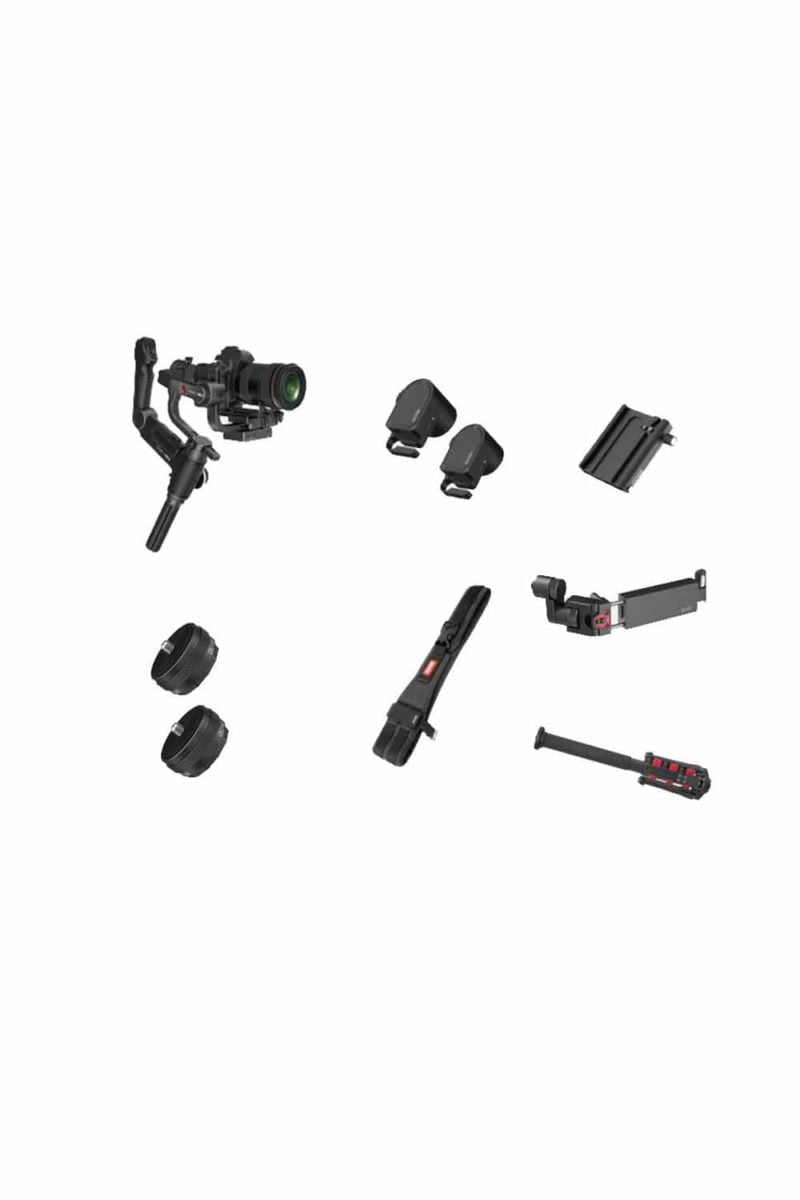

Η συσκευασία περιλαμβάνει:
Crane 3 Lab + TransMount Crane 3 Lab Handheld Tripod 1pc
TransMount Phone Holder with Crown Gear 1pc
TransMount Crane 3 Lab Focus and Zoom Combo Kits 1pc
TransMount Telescopic Monopod with Locking Buckle 1pc
TransMount Multifunctional Camera Belt 1pc
TransMount Quick Setup Kit 2pcs
TransMount Quick Release Base Plate 1pc
